Pixelcade Mounting Options
Click here for Pixelcade LCD mounting info
Pixelcade LED marquees are available in 6 sizes:
- P2.5 – 12.5″ x 3.1″ x .58″ // 317 mm x 79 mm x 15 mm – Typically used as a Pinball DMD
- P3 – 15″ x 3.8″ x .58″ // 380 mm x 97 mm x 15 mm
- P4 – 20″ x 5″ x .54″ // 508 mm x 127 mm x 14 mm
- P5 – 25.2″ x 6.3″ x .58″ // 640 mm x 158 mm x 15 mm
- P6 – 30.21″ x 7.55″ x .50″ // 767 mm x 191 mm x 13 mm
- P7.62 – 38.4″ x 9.6″ x .55″ // 976 mm x 244 mm x 14 mm – Pixelcade Jumbo
There are two mounting options: flush mount or protruding
Option 1: Flush Mount

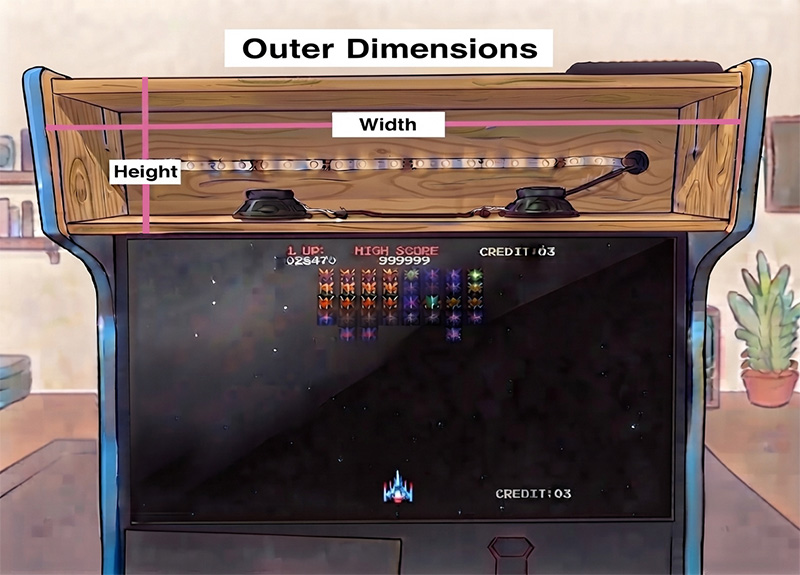

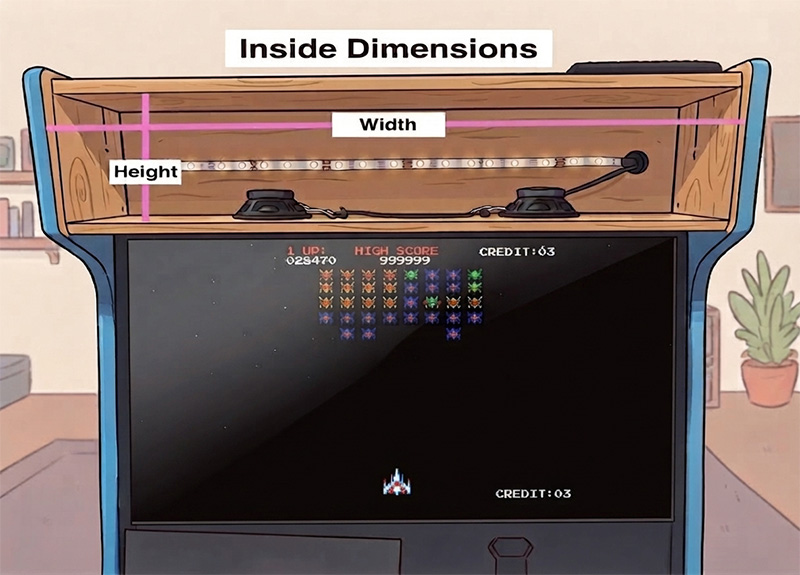

This is the cleanest look. To choose the size, you’ll most likely choose a Pixelcade marquee size on step down from the size of your current marquee. In this example, the original marquee is 30.5″ x 7.5″. As some cabinets have 3/4″ strips on the inside of the marquee opening and the Pixelcade marquee will sit 1 1/4″ inside , 25″ x 6.2″ (P5) will be the choice. The Outside Marquee Dimensions will be equal to the size of your original marquee.
 |  |
See this video to help visualize, the back size of the mount will sit inside the marquee opening 1 1/4″ inch back and the front side will be flush mount, replacing your current marquee.
Your existing horizontal top and bottom brackets will be used to hold the Pixelcade marquee in place.
 |
|
Option 2: Protruding
Here you’ll attach the back of the mount directly to your cabinet and the marquee will protrude by ~3/4″. The blue bars represent inside wood strips in the cabinet marquee opening (typically 3/4″). This option is good for cases where the marquee opening is smaller and it’s preferred to fill up more of the marquee space.
Example Protruding Mount Installation
For a custom design quote, fill out this form and we’ll contact you to confirm the design.
Pre-Made Mounts for Existing Cabinets
Over time, we’ll be adding pre-made mounts for common arcade cabinets. Here are the current mounts available. You can use as is but do check the dimensions first to ensure the same as your cabinet or find one that is close to your cabinet and modify the files.
| Arcade Cabinet Laser Cut Design | Type | Panel Size | Pics |
| Original Street Fighter Arcade Cabinet | Flush | P4 | |
| Game Room Solutions Deluxe Bartop | Flush | P3 | Video |
| Microcenter 2 Player Upright | Flush | P4 | Pics and Write-Up |
| X-Arcade 2 Player Upright | Flush | P4 |
Design your Own Mount
If you have access to a laser cutter or a laser cutting service like Ponoko, you can design your own mount by building off these reference mounts.
For an additional fee, we can also custom design a mount for your cabinet and send it to you fully assembled. Complete this form for this option.
|
P2.5 Reference Mount (Pinball DMD Size) Dimensions: 12.6” x 3.15” |
|
Dimensions: 16″ x 4.5″ |
|
Full Mount 21.65″ x 6″ Half Mount 20.1″ x 5″ |
|
Dimensions: 31.1” x 9.04” |
|
Pixelcade Jumbo Refernece Mount Dimensions: 40″ x 10″ |
Diffusing LEDs with Grey Tinted Acrylic
It’s recommended to diffuse the LEDs with a grey tinted acrylic cover that is 1/8″ or 3mm thick.
- Tap Plastics – Transparent Dark Smoke (36% Light Transmission) – In store cutting available
- Ponoko Grey Translucent Acrylic – You can submit a design file to http://ponoko.com and Ponoko will laser cut and mail to you, service is very good
Building your own Arcade Cab from Scratch?
If building your own cab from scratch, here is a marquee area reference design for a cab with a 32″ LCD monitor. This will accomodate a flush mount installation of the Pixelcade LED P5 size.
